Getting Start with Weily Bluetooth LED Strip Light

led strip light

This guide covers the initial Weily bluetooth led light setup process including how to connect and what app you should download.

1.What's in the Package?

weily led strip light package

  • 2*RGB led strip lights
  • 1* 3keys Bluetooth controller
  • 1*23keys IR remote
  • 1*adaptor
  • 1*user manual
  • 1*double-side tape

 2. Led Lights Controller

  • When lights on to switch 20 kinds of static colors.
  • In the closed state, press this key to turn on the lights; In static mode, press this key control speed In dynamic mode, press this key control speed.
  • Switch color changing modes, there are 21 modes for chosen.

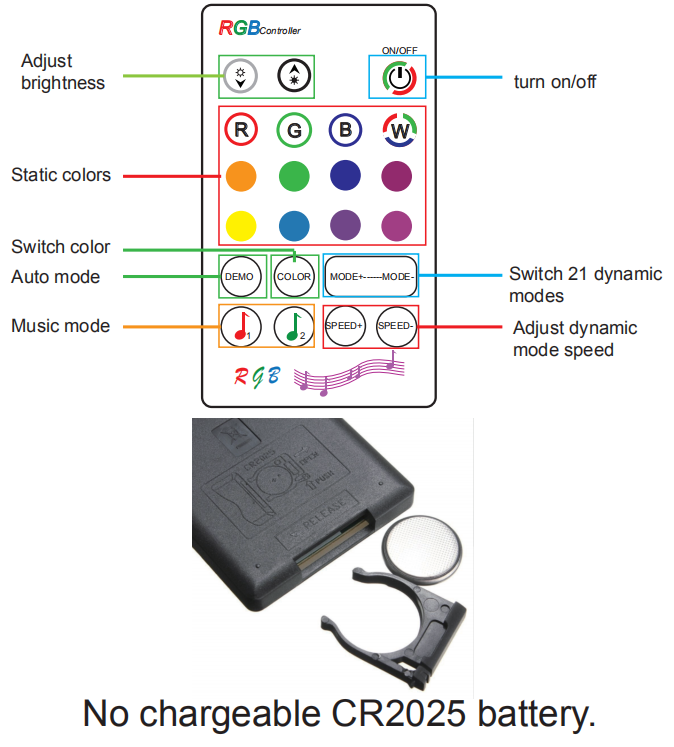

3. RGB Controller

bluetooth led light remote


Weily led strip lights is IP65 waterproof, the controller and adaptor are non-waterproof. Attention: please use it for indoor, do not use it for outdoor.

5.Download Happy Lighting App

Download the “Happy Lighting” App from Google Play or Apple store.

6.Bluetooth Connection

Please note below before you start the Bluetooth connection,

  • Bluetooth version in your phone is above V4.2.
  • Your phone is near to controller.

7.Key Features

Bluetooth Music Function: Sync to music LED strip lights is with 23keys remote controller, the music sensitivity can be adjusted to strong or weak, which is fast or slow to change colors with music frequency. There are 4 types of music modes that is 3/7 color jump or fade,the changing speed can be adjusted. So you can put it as a TV back music strip lights, party lights, home theater music strip lights. The color also can be dimmable in 4 level.

Easy to Use: Very easy to control and change color by remote,full color change, RGB LED strip lights is with dimmable function. There is a power supply inside to connect it to the music LED strip lights in 2 rolls and it can start to work. You can find the real connection way in photo page, very simple and easy to do.

Strong Tape Adhesive: This music LED strip lights use white color sponge tape back, very strong to stick on the wall.Due to the strips is with full glued,it’s a little heavy than the standard, but not falling down even you use for many days.

Drimmable Function: This 32.8feet RGB strip lights is dimmable, you can dim it to 25% /50%/75%/100% brightness by the remote controller. And there are RED,GREEN,BLUE,WHITE color option, so you can adjust it as you need to save energy.

Smart Control by APP: Phone controlled instead of remote,you can change color and set time as wake up light.


Led type SMD5050 RGB
Led Qty 300 Leds
Power 28w
Adaptor 100-240VAC~DC12V/3A
Temperature 6000K
Luminous Flux 2000Lm

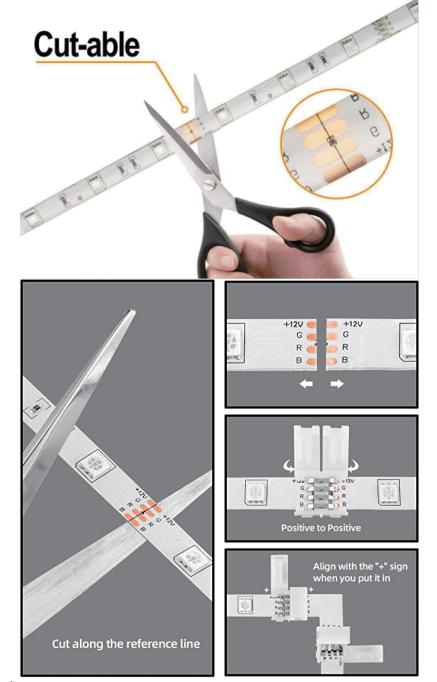

9.How to Connect and Cut

how to connect led strip light

 cutable led lights
